Weave Wire Mesh
< >

Twill Weave Wire Mesh

Material: Stainless steel, Special alloy
Feature: Excellent resistance against acid
Application: Filtering and Sieving

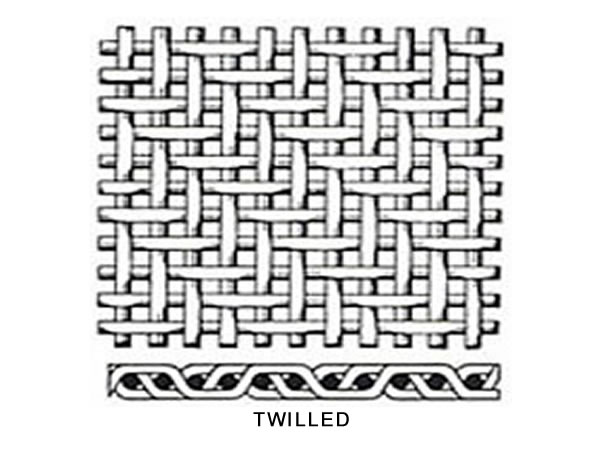

Twill weave wire mesh is produced by passing each weft wire alternately over and under two warp wires. The pattern is staggered on successive warp wires, giving the appearance of parallel diagonal lines.

This weave allows the use of proportionately heavier wires in a particular mesh count (number of openings per lineal inch) than is possible in plain weave.

This cloth has a wide application capable of supporting greater loads and finer filtration.

Wire Material: Stainless steel 304, 304L, 316, 316L, Brass, Copper, Bronze, Duplex Steel, Super Duplex Steel, Monel, Inconel, Harrington Alloy, Nickel Mesh, Titanium Mesh, Special Alloy etc.

Features:

Corrosion resistance.
Anti-acid and alkai
Anti-high temperature.
Good filter performance.
Long using life

Application: Crossed twilled wire mesh are basic components in the production of filters, colanders for aliments, chemicals products, shielding, mosquito nets, etc.

This weave allows the use of proportionately heavier wires in a particular mesh count(number of openings per lineal inch) than is possible in plain weave.

This cloth has a wide application capable of supporting greater loads and finer filtrations.

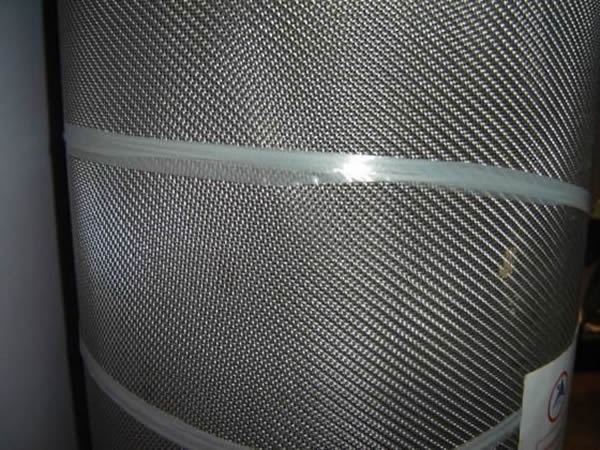

Packing: Water Proof Paper, wooden Crate.

Mesh Count per Inch Wire Diameter mm Aperture Size mm Open Area Weight for Stainless Steel (kg/sq m)
230 0.036 0.074 45% 0.15
250 0.04 0.062 37% 0.2
270 0.04 0.054 33% 0.21
270 0.036 0.058 38% 0.17
300* 0.04 0.045 28% 0.24
300* 0.036 0.055 42% 0.13
325* 0.036 0.042 29% 0.21
325 0.028 0.05 41% 0.13
350* 0.03 0.043 34% 0.16
400* 0.03 0.034 27% 0.18
500* 0.025 0.026 26% 0.16
