Weave Wire Mesh
< >

Reverse Plain Dutch Weave

Material: Stainless steel wire
Feature: Corrosion Resistance
Application: Industry Filters

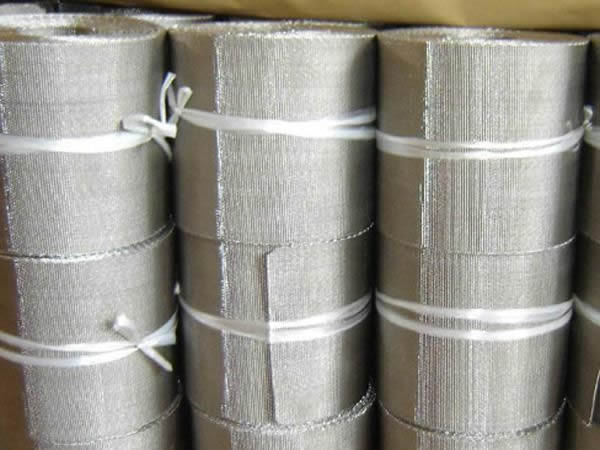

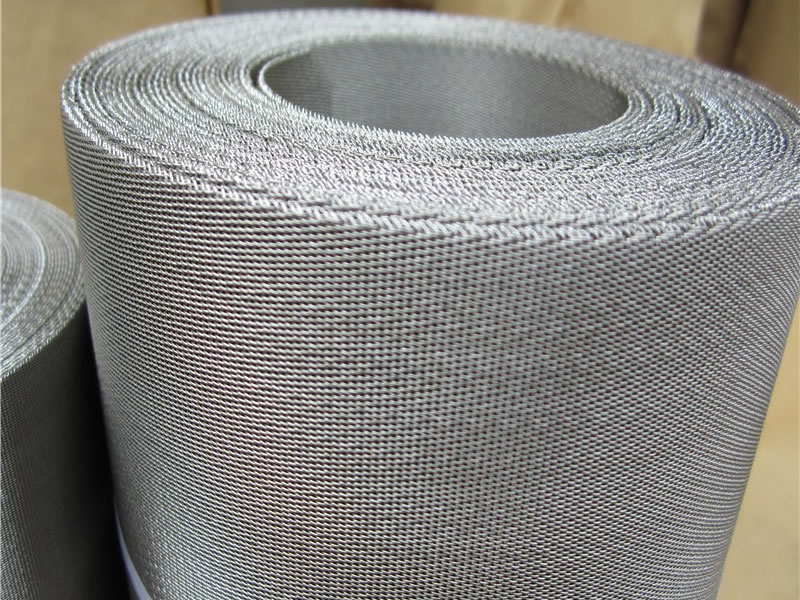

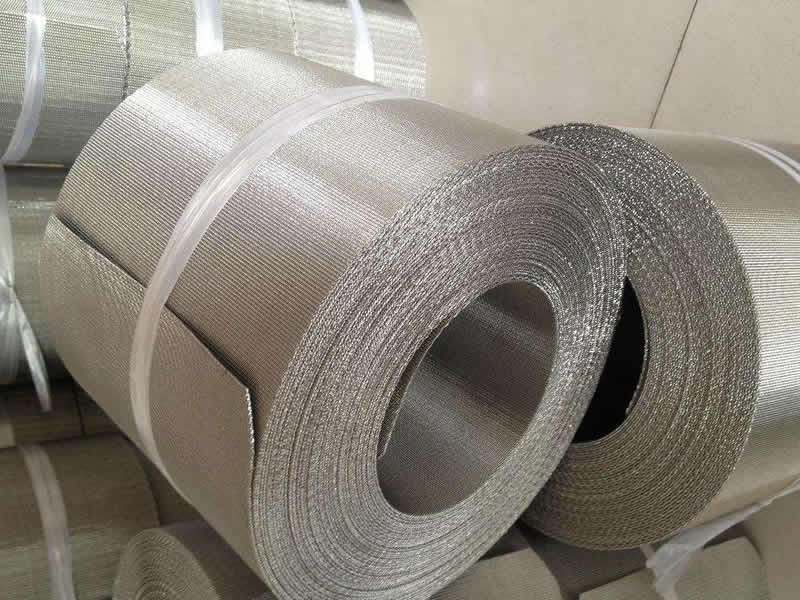

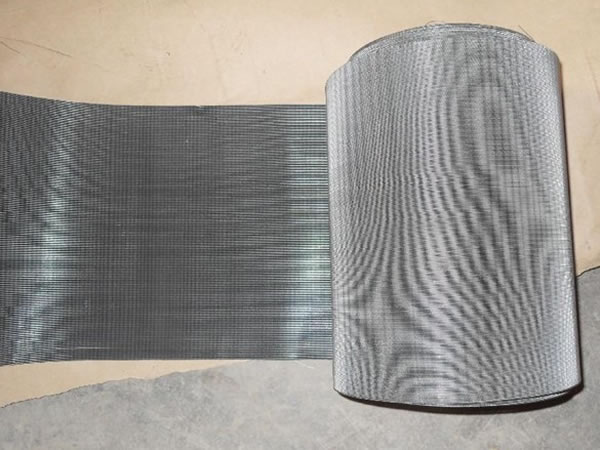

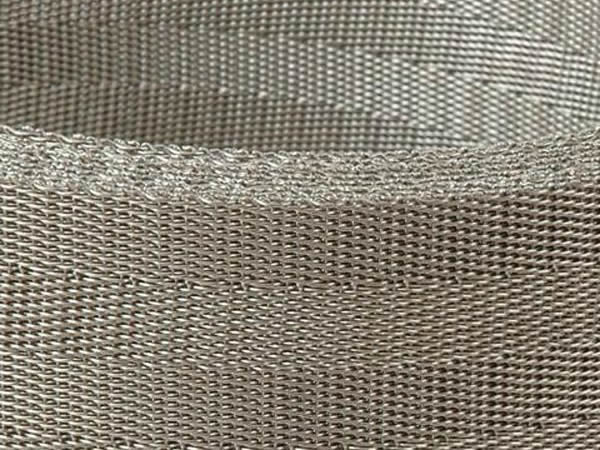

Reverse Dutch weave wire cloth is woven using two sizes of wire. Smaller wires are used in the warp direction and are woven with a larger shute wire. The smaller wires are woven tightly together, providing a tight mesh for filtering. The larger wire provides strength to the mesh. The primary uses of this wire cloth are filtration and separation of liquid and slurry products.

Reverse Twill Dutch weave wire cloth combines Dutch and twill weaving to provide a fine mesh filtering cloth. The weaving process allows for the use of very fine wires, producing filtering mesh for gas and liquid applications.

Materials: 304,304L,316,316L 904 904L 310 310s 410 430 etc.

Feature:

High Tensile Warp wire for Auto-Screen changers used in the Plastic Extrusion Industry.
Rubbed Edges after slitting to help with tracking for Auto-Screen changers.
Plasma and laser cut parts to help prevent edges wire fraying.
100% Inspection of Wire Cloth for critical applications such as sand screens and aerospace applications.

Application:

Suitable for plastic wire drawing machine, stretch film machine, coating machine filters, such as plastic woven bag, plastic film.

Used for plastic recycling filter, otherwise wafer type, square type, single or multi-layer molding machine filter.

Reverse dutch mesh Catalog:

Mesh count Wire diameter(mm) Thickness(mm) Width(mm)
54*15 0.45*0.6 1.75 50--800
72*15 0.45*0.55 1.7 50--800
132*17 0.23*0.45 1.2 50--1000
160*18 0.28*0.45 1.27 50--1000
200*40 0.17*0.27 0.7 50--1500
260*40 0.15*0.27 0.65 50--1500
300*40 0.13*0.27 0.65 50--1500
350*40 0.13*0.27 0.6 50--1500
