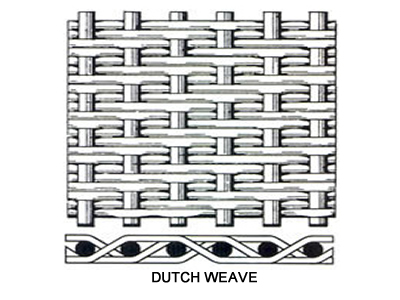

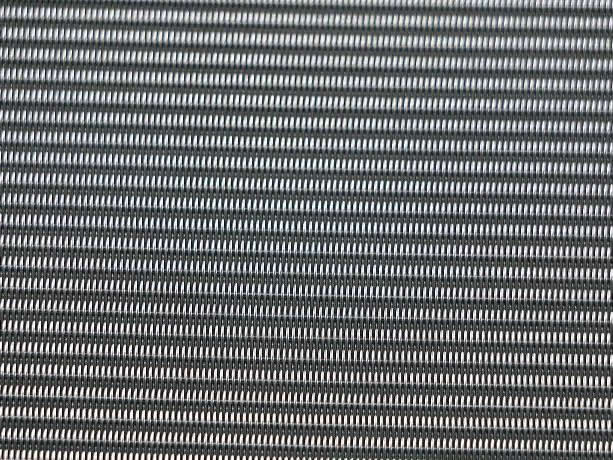

Dutch Weave wire mesh is produced by the use of coarse mesh (mesh wire, woven wire mesh, wire mesh basket) in the warp and a fine mesh with relatively smaller wire in the weft. This weave results in greater strength with very fine openings and is primarily used as a filter cloth. The shape and position of the openings and particle retention and increase filter cake formation.

Material: Stainless steel 304, 304L, 316, 316L, Brass, Copper, Bronze, Duplex Steel, Super Duplex Steel, Monel, Inconel, Harrington Alloy, Nickel Mesh, Titanium Mesh, Special Alloy etc.

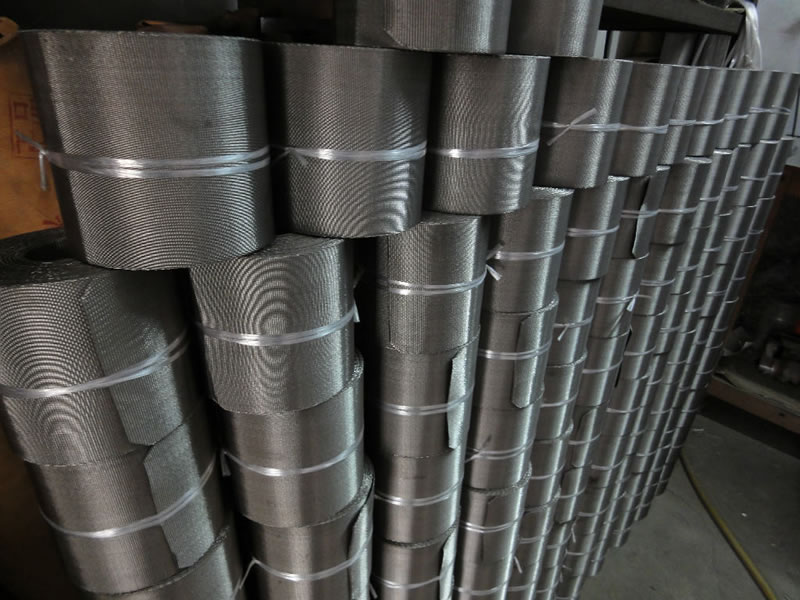

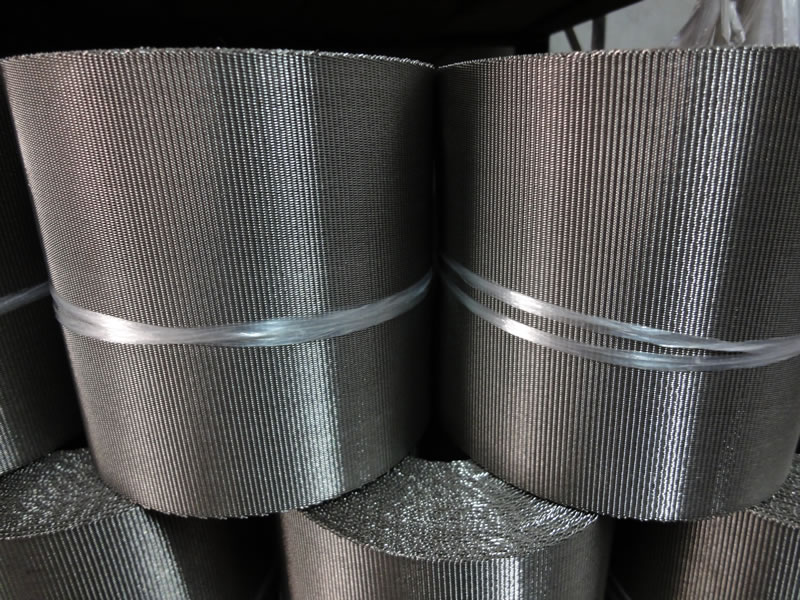

Length:30m per roll.

Width:0.1m-6m.

Weave ways: plain weave , twill weave , bamboo-form weave , reverse weave.

Featute: Good wear-resistance, Heat-resistance, Acid-resistance, Corrosion resistance and characteristics.

Application: the prodcution is mainly applied to filter  chemical industry, medicine, petroleum, telecom-communication, scientific research units or other applications.

Mesh	Wire Diameter				Weave
	Warp		Shute
	in	mm	in	mm
12x64	0.023	0.58	0.0165	0.42	Plain Dutch
14x88	0.019	0.48	0.012	0.30	Plain Dutch
14x110	0.016	0.40	0.011	0.28	Plain Dutch
24x110	0.014	0.355	0.010	0.25	Plain Dutch
30X150	0.009	0.23	0.007	0.18	Plain Dutch
40X200	0.007	0.18	0.0055	0.14	Plain Dutch
50X250	0.0055	0.14	0.0045	0.11	Plain Dutch

Twill Dutch Weave Mesh
Mesh/Inch Warp*Weft	Wire Dia. Warp*Weft (mm)	Aperture Size(µm)	Available Area(%)	Weight(kg/m²)	Thickness(mm)
20*270	0.25*0.2	119	17.6	3.14	0.65
20*200	0.355*0.28	118	12.1	4.58	0.915
24*300	0.28*0.18	110	19.6	3.01	0.64
20*150	0.45*0.355	101	7.5	6.02	1.16
30*340	0.28*0.16	89	17.9	2.84	0.6
30*270	0.28*0.20	77	11.2	3.41	0.68
40*540	0.18*0.10	70	23.5	1.73	0.38
40*430	0.18*0.125	63	15.4	2.09	0.43
50*600	0.125*0.09	51	17.2	1.47	0.305
50*500	0.14*0.11	47	12	1.83	0.364
65*600	0.14*0.09	36		1.59	0.32
70*600	0.14*0.09	31	10.1	1.61
78*760	0.112*0.071		13.5	1.25	0.254
78*680	0.112*0.08	29	10.3	1.37	0.272
80*680	0.112*0.08	28	9.8	1.38
90*850	0.10*0.063	26	12.7	1.12	0.226
90*760	0.10*0.071	24	9.6	1.23	0.242
100*850	0.10*0.063	22	10	1.14	0.226
130*1500	0.063*0.036	21	18.6	0.64	0.135
100*760	0.10*0.071	20	7.4	1.25	0.242
130*1200	0.071*0.045	18	12	0.8	0.161
130*1100	0.071*0.05	17	9.4	0.87	0.171
150*1400	0.063*0.04	15	11.4	0.71	0.143
160*1500	0.063*0.036		12.4	0.67	0.135
165*1500	0.063*0.036	14	11.4
174*1700	0.063*0.032	13	12.9	0.62	0.127
165*1400	0.063*0.04		8.8	0.73	0.143
174*1400	0.063*0.04	11	7.4	0.74
203*1600	0.05*0.032	10	9.3	0.58	0.114
216*1800	0.045*0.03		9.4	0.53	0.105
203*1500	0.056*0.036	9	6.2	0.67	0.128
250*1900	0.04*0.028	8	7.8	0.51	0.096
250*1600	0.05*0.032		3.8	0.63	0.114
285*2100	0.036*0.025	7	7.2	0.44	0.086
300*2100	0.036*0.025	6	6
317*2100	0.036*0.025	5	4.7
325*2300	0.036*0.024	4	4.2
363*2300	0.032*0.022		4.5	0.4	0.076
400*2700	0.028*0.02		4.7	0.36	0.068
500*3500	0.025*0.015	3	4.9	0.3	0.055
