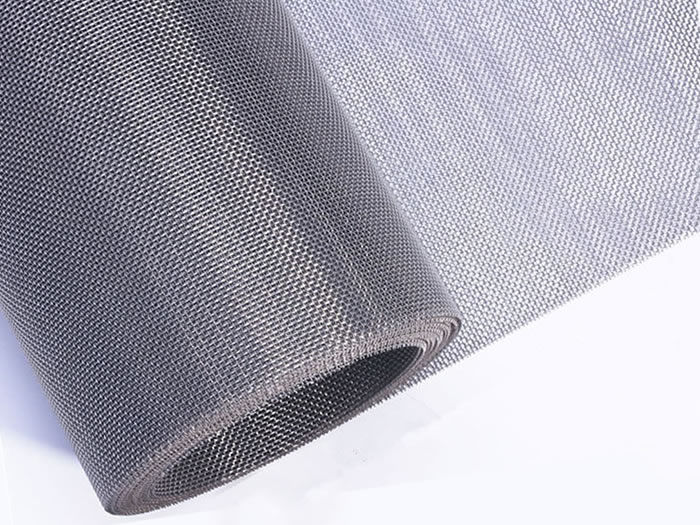

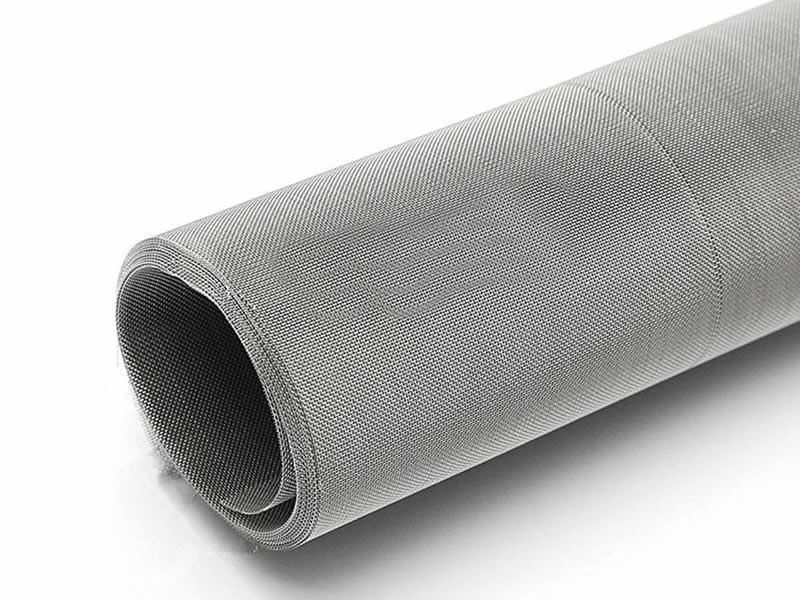

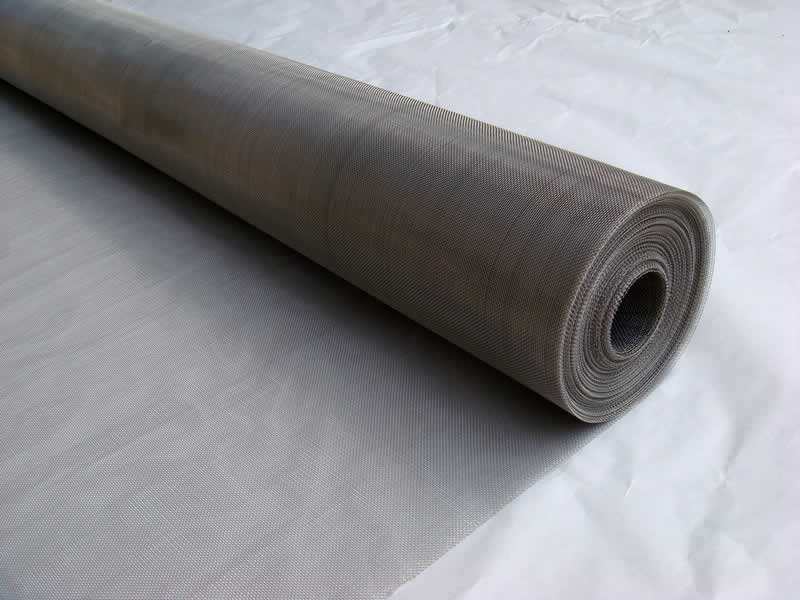

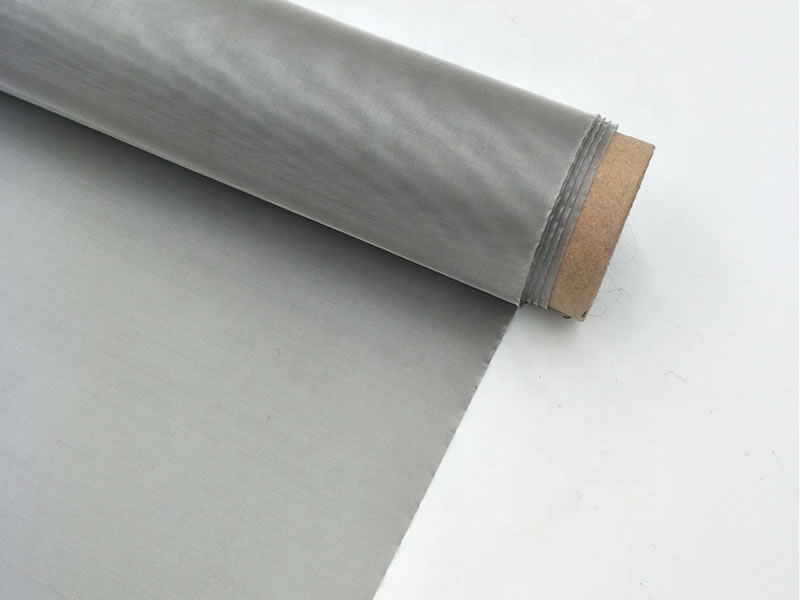

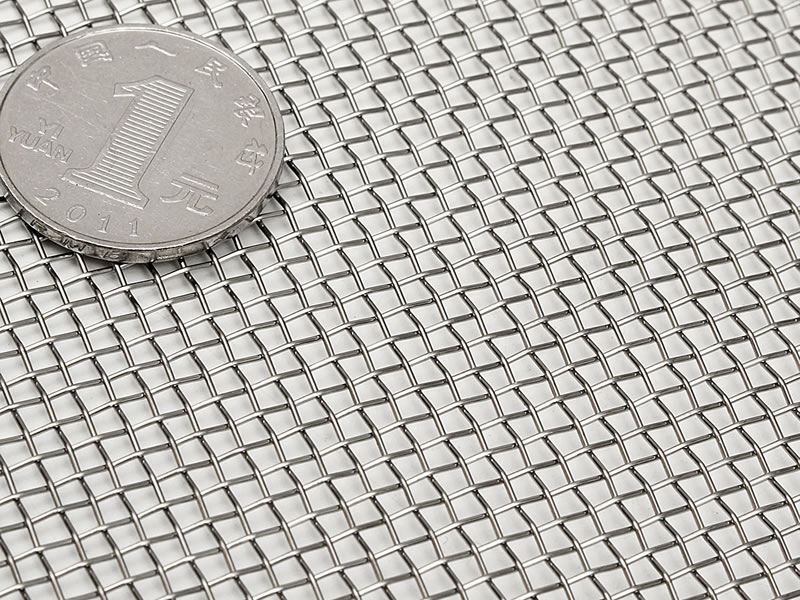

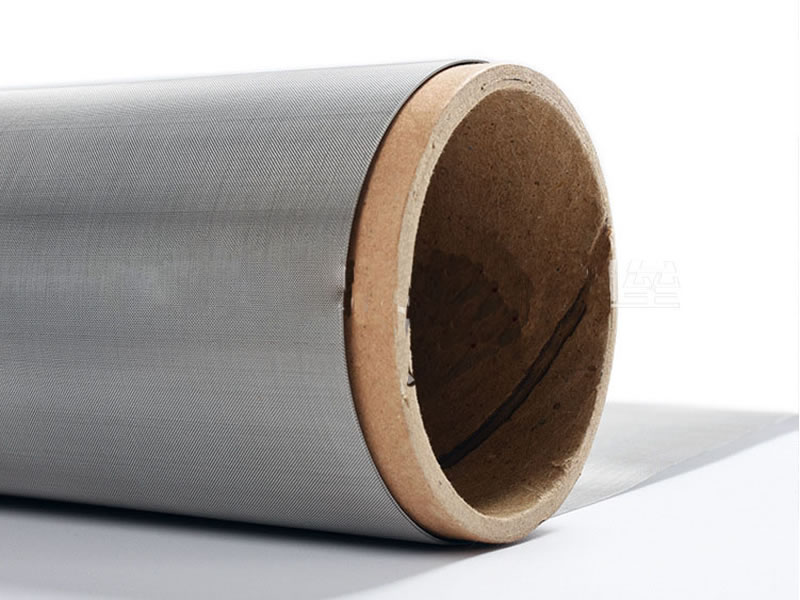

Plain Weave: also called tabby weave, linen weave or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple cross-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.

Plain weave wire mesh can be used in many applications such as a vibration & shock absorber, gas & liquid filtration, noise dampening, seal & gasket applications, heat insulation, EMI/RFI shielding, mist elimination & technology separation and engine catalyst etc. It is widely used in various industries such as automobile, electronics, aviation, military, industrial, commercial consumer goods, telecommunication, medical, test equipment and accessories, etc.

Material: Stainless steel 304, 304L, 316, 316L, Brass, Copper, Bronze, Duplex Steel, Super Duplex Steel, Monel, Inconel, Harrington Alloy, Nickel Mesh, Titanium Mesh, Special Alloy etc.

Type: Weave Wire Mesh

Wire diameter: 0.018-2.03mm

Hole shape: Square Hole

Mesh count: 2-650mesh

Width: 0.5m-3m or customized

Length: 30m/roll or customized

Features:

Corrosion resistance.
Anti-acid and alkai
Anti-high temperature.
Good filter performance.
Long using life

Applicatiosn:

In acid, alkali environment conditions sieving and filtering.
Petroleum industry as mud mesh.
Chemical fiber industry as screen mesh.
Plating industry as acid cleaning mesh.

Stainless Steel Woven Wire Mesh(Plain Weave)
mesh/inch	wire diameter(mm)	aperture(mm)	mesh/inch	wire diameter(mm)	aperture(mm)
2 mesh	1.80	10.90	60mesh	0.15	0.273
3 mesh	1.60	6.866	70mesh	0.14	0.223
4 mesh	1.20	5.15	80mesh	0.12	0.198
5 mesh	0.91	4.17	90mesh	0.11	0.172
6 mesh	0.80	3.433	100mesh	0.1	0.154
8 mesh	0.60	2.575	120mesh	0.08	0.132
10mesh	0.55	1.990	140mesh	0.07	0.111
12mesh	0.50	1.616	150mesh	0.065	0.104
14mesh	0.45	1.362	160mesh	0.065	0.094
16mesh	0.40	1.188	180mesh	0.053	0.088
18mesh	0.35	1.060	200mesh	0.053	0.074
20mesh	0.30	0.970	250mesh	0.04	0.061
26mesh	0.28	0.696	300mesh	0.035	0.049
30mesh	0.25	0.596	325mesh	0.03	0.048
40mesh	0.21	0.425	350mesh	0.03	0.042
50mesh	0.19	0.318	400mesh	0.25	0.0385
